Golf carts have become a popular mode of transportation in many places, including golf courses, resorts, retirement communities, and more. One of the essential components of a golf cart is its battery, which powers the electric motor that drives the vehicle. Lithium-ion batteries have recently become the preferred choice for golf carts due to their many benefits.

This article will answer some frequently asked questions about lithium-ion golf cart batteries.

The History of Golf Cart Batteries

Golf cart batteries have been an essential component of electric golf carts since their inception in the early 1950s. The first golf carts were powered by heavy lead-acid batteries, which had limited energy storage capacity.

In the early 1960s, the first deep-cycle lead-acid batteries were introduced, designed specifically for golf carts. These batteries had thicker plates and could provide more energy for extended periods of time. However, they still had some drawbacks, such as their relatively short lifespan and the need for frequent maintenance.

In the 1990s, new technologies, such as sealed lead-acid and nickel-cadmium batteries, were developed and used in golf carts. These batteries had better energy density, longer lifespans, and required less maintenance than their predecessors, but they still had limitations in terms of energy storage capacity and cost.

In the 2000s, lithium-ion batteries began to be used in golf carts, providing even higher energy density and longer lifespans than previous technologies. Lithium-ion batteries also require less maintenance and are lighter in weight, making them a popular choice for golf cart manufacturers.

Today, golf cart batteries have evolved with new materials and designs, such as lithium iron phosphate batteries, which offer improved safety and longer lifespans than traditional lithium-ion batteries. The history of golf cart batteries is a testament to the importance of energy storage technology in developing electric vehicles and other applications.

Why Are Lithium-Ion Batteries Better Than Lead-Acid Batteries for Golf Carts?

Lead-acid batteries have been the standard for golf carts for many years but have some significant drawbacks. They are heavy, bulky, and require regular maintenance. In contrast, lithium-ion batteries are lighter, more compact, and require less maintenance. They also have a higher energy density, which means they can store more energy per unit of weight.

Energy Density

Li-ion batteries have a higher energy density than lead-acid batteries, which means they can store more energy in a smaller size and weight. This is particularly important for golf carts, which must be lightweight and easy to maneuver on the golf course.

Longer Lifespan

Lithium-ion batteries have a longer lifespan than lead-acid batteries, which can be used for many more charge and discharge cycles, making them more cost-effective over the long term, as they need to be replaced less frequently.

Faster Charging

Li-ion batteries can be charged much faster than lead-acid batteries, reducing downtime and allowing for more rounds of golf to be played in a day.

Maintenance

Lithium-ion batteries require less maintenance than lead-acid batteries. In addition, lead-acid batteries must be regularly checked and topped up with distilled water, while lithium-ion batteries require no maintenance other than occasional cleaning.

Environmental Impact:

Lithium-ion batteries are more environmentally friendly than lead-acid batteries, as they contain no toxic metals and can be recycled more easily.

Which Is Better?

Overall, the higher energy density, longer lifespan, faster charging, lower maintenance, and better environmental impact make lithium-ion batteries a superior choice for golf carts compared to lead-acid batteries.

How Long Will a Golf Cart Run With a Lithium-Ion Battery on a Single Charge?

The amount of time a golf cart can run on a single charge of a lithium-ion battery depends on several factors, including the battery’s capacity, the weight of the golf cart and its passengers, the terrain, and the speed at which the golf cart is driven.

Generally, a high-quality lithium-ion battery with a capacity of 48 volts and 100 Ah can power a golf cart for up to 30 miles or more on a single charge. However, this range can vary depending on the factors mentioned above.

For example, the range will be reduced if the golf cart is carrying a heavy load, such as several passengers or golf bags, or if it is driven up steep hills or rough terrain. Similarly, if the golf cart is driven at high speeds, the battery will be depleted more quickly.

It’s important to note that lithium-ion batteries provide consistent power throughout their discharge cycle, so the golf cart will maintain a constant speed and power output until the battery is depleted. This is different from lead-acid batteries, which can experience a gradual loss of power as they discharge.

How Long Does It Take To Charge a Lithium-Ion Golf Cart Battery?

The time it takes to charge a lithium-ion golf cart battery depends on several factors, including the battery’s capacity, the charger’s output, and the amount of charge remaining.

A standard 48-volt lithium-ion golf cart battery with a capacity of 100 Ah can be fully charged in 6-8 hours using a high-quality charger designed for lithium-ion batteries. However, some chargers may be capable of charging the battery faster or slower, depending on their output rating.

It’s important to note that lithium-ion batteries can be charged at any point during their discharge cycle, unlike lead-acid batteries, which require a discharge before recharging. This means that if a golf cart is not used for a full round of golf, the battery can be charged for a shorter period of time to “top off” the charge and provide sufficient power for the next use.

Some lithium-ion golf cart batteries are designed to be partially charged and discharged for maximum lifespan and may not need to be fully charged after each use. Follow the manufacturer’s recommended charging and maintenance practices to ensure the battery provides maximum performance and longevity.

How Long Do Lithium-Ion Golf Cart Batteries Last?

The lifespan of lithium-ion golf cart batteries depends on several factors, including the quality, how often it is used, how it is charged and maintained, and the environmental conditions in which it is used. However, in general, a well-maintained lithium-ion golf cart battery can last between 5-10 years or more and can provide anywhere from 2500 to 5000 cycles of charge and discharge.

The lifespan of a lithium-ion golf cart battery can be extended by following proper charging and maintenance practices, such as:

1. Charging the battery after each use and avoiding deep discharges
2. Using a high-quality charger designed for lithium-ion batteries
3. Keeping the battery cool and avoiding exposure to high temperatures
4. Keeping the battery clean and free of dirt and debris
5. Regularly inspecting the battery for signs of damage or wear and tear

It’s important to note that the lifespan of a lithium-ion battery will gradually decrease over time, and eventually, it will need to be replaced. When a lithium-ion golf cart battery begins to show signs of decreased performance, such as reduced run time or longer charging times, it may be time to replace the battery.

Are Lithium-Ion Golf Cart Batteries Safe?

Li-ion golf cart batteries are generally safe when used and maintained correctly. However, as with any battery technology, some safety considerations must be remembered.

Lithium-ion batteries contain flammable electrolytes and can catch fire or explode if damaged, punctured, or exposed to extreme temperatures. However, proper handling, storage, and charging can minimize these risks.

To ensure the safe operation of lithium-ion golf cart batteries, follow these guidelines:

1. Use a high-quality charger designed for lithium-ion batteries and follow the manufacturer’s instructions for charging.
2. Avoid overcharging or undercharging the battery, as both can damage the battery and increase the risk of fire or explosion.
3. Keep the battery cool and avoid exposure to high temperatures, as heat can cause the battery to degrade and become more prone to failure.
4. Avoid physical damage to the battery, such as dropping it or puncturing it with sharp objects.
5. Monitor the battery’s performance and condition regularly, and replace it if there are signs of damage or wear and tear.
6. Store the battery in a cool, dry place, away from flammable materials.

With proper handling and maintenance, lithium-ion golf cart batteries are a safe and reliable power source for golf carts and other applications. Follow best practices for secure battery handling and stay up to date with the latest safety guidelines from the manufacturer.

What Type of Lithium Ion Battery Is Best for Golf Carts?

Several types of lithium-ion batteries are available for golf carts, each with advantages and disadvantages. The best lithium-ion battery for a golf cart depends on several factors, including the desired performance, lifespan, and cost.

The most common types of lithium-ion batteries used in golf carts are Lithium Iron Phosphate (LiFePO4) and Lithium Nickel Manganese Cobalt Oxide (NMC).

LiFePO4 batteries are known for their safety, long lifespan, and ability to provide consistent power output throughout their discharge cycle. They are also more expensive than NMC batteries but can offer better performance and reliability.

NMC batteries are known for their high energy density, which allows for a more extended driving range, and their lower cost than LiFePO4 batteries. However, they may not last as long as LiFePO4 batteries and can be more prone to safety issues if not handled or appropriately charged.

Ultimately, the choice between LiFePO4 and NMC batteries comes down to a trade-off between performance, lifespan, and cost. LiFePO4 batteries are generally considered the best choice for golf carts due to their safety, reliability, and long lifespan, although they can be more expensive than NMC batteries. However, NMC batteries may be more cost-effective for those prioritizing driving range and upfront cost over long-term performance and reliability. Consult a reputable vendor or expert to determine the best lithium-ion battery for your needs and budget.

How Much Do Lithium-Ion Golf Cart Batteries Cost?

The cost of these batteries can vary widely depending on several factors, including the battery’s capacity, quality, brand, and the vendor from which it is purchased. For example, li-ion golf cart batteries are more expensive than traditional lead-acid batteries, but their longer lifespan and superior performance make them a worthwhile investment for many golf cart owners.

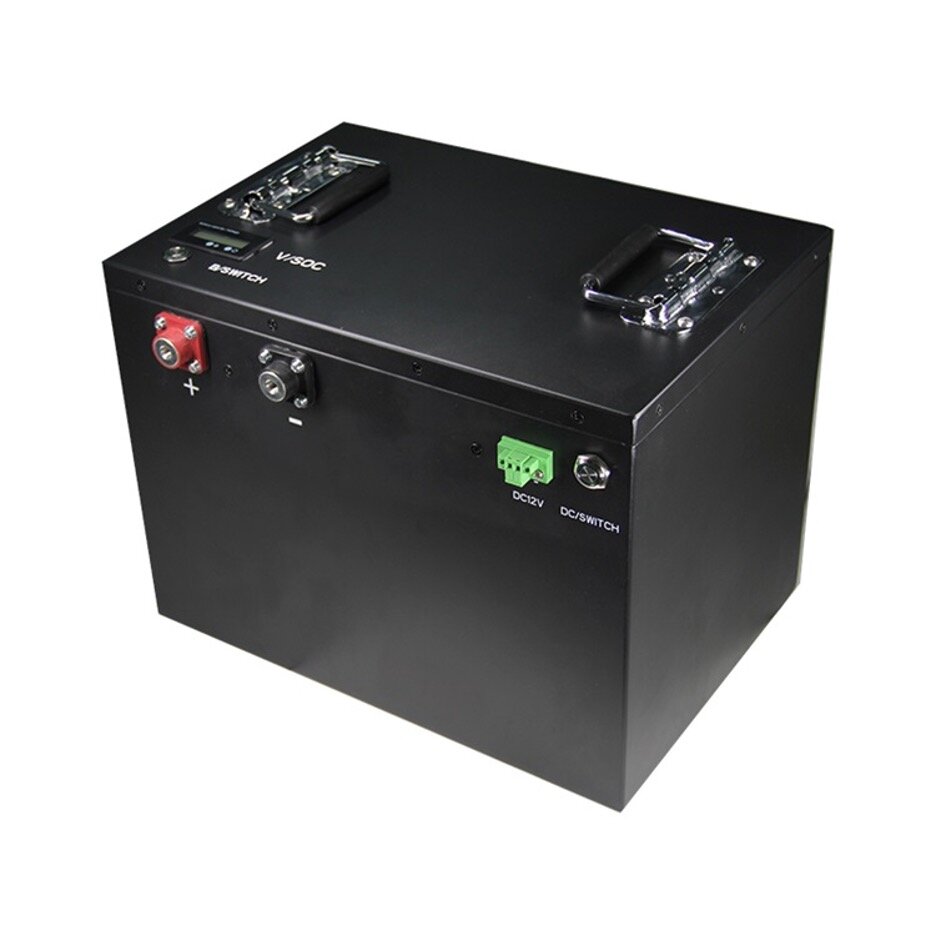

A standard 48-volt lithium-ion golf cart battery with a capacity of 100 Ah can cost anywhere from $1,500 to $2,500 or more, depending on the brand and quality. Higher-capacity batteries and those with advanced features such as built-in battery management systems may cost even more.

It’s important to note that the initial cost of the battery is just one factor to consider when evaluating the total cost of ownership. Lithium-ion batteries generally last longer than lead-acid batteries, require less maintenance, and can provide better performance and reliability, translating into cost savings over time.

Additionally, many vendors offer financing options or payment plans to make the cost of lithium-ion golf cart batteries more manageable. Research, compare prices and features, and work with a reputable vendor to ensure you get a high-quality battery that meets your needs and budget.

Why Choose a Lithium-Ion Battery for your Golf Cart?

Choosing a lithium-ion battery for your golf cart is a wise investment with many benefits. Whether you prioritize performance, range, cost-effectiveness, or environmental sustainability, lithium-ion batteries offer a superior alternative to lead-acid batteries to improve your golf carting experience and save you money in the long run. If you are considering a lithium-ion battery for your golf cart, do your research, consult with a reputable vendor or expert, and choose a high-quality battery that meets your specific needs and budget.
