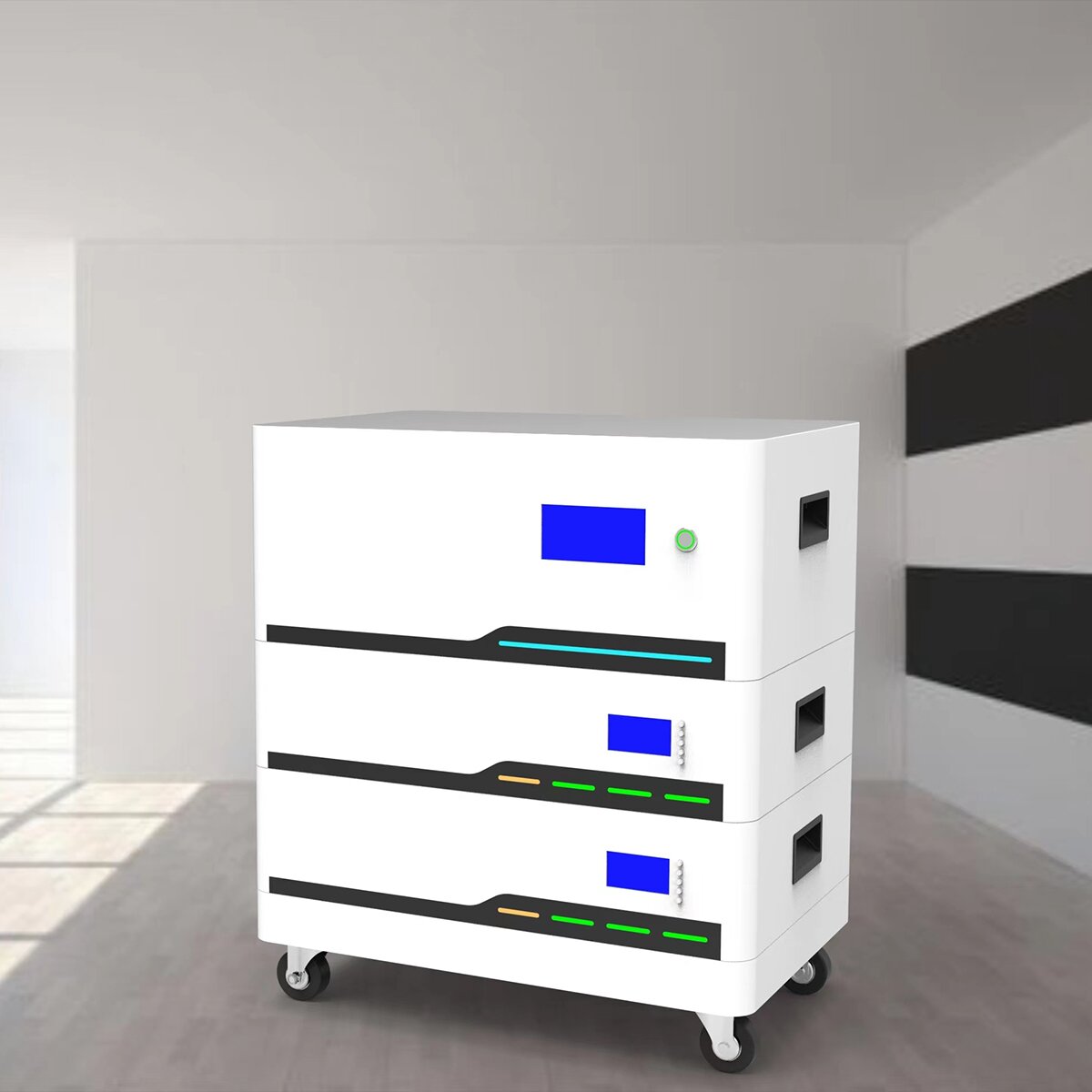

Solar ESS All In One Home Energy Storage Systems

Solar ESS Battery Storage Pack 5KWh Storage Systems 200x200

Home Energy Storage Systems Solar ESS Battery Pack 200x200

5000W Single Phase/Three-Phase Energy Storage All In One Solar Home Energy Storage Systems

Lithium Ion Battery ,Energy Storage

The 5000W Solar Home Energy Storage Systems provides an advanced, versatile and efficient power solution for homeowners seeking to maximize the use of solar energy. The device is specially designed for seamless integration with solar installations, using the clean and renewable energy provided by solar energy to create a comprehensive and efficient power solution. Working in tandem with solar panels, the system captures and stores excess energy during peak production periods, ensuring this precious resource is available when it is needed most. The Advanced Home Energy Storage Systems help reduce overall costs.

5kwh

INQUIRY

facebook
twitter
linkedin
pinterest
Ins

Protection:

On-time Dispatch Guarantee
Support 24/7

Product details

Company profile

Overview

Parameter Details

Rated Power:5000W
Rated Voltage/Range:230V /180Vac~280Vac； 110-120/220-240V split phase 380V high-voltage system
Rated Frequency:50/60Hz
Output Power:5000W
Output Voltage:230V /180Vac~280Vac； 110-120/220-240V split phas 380V high-voltage system
Rated Frequency:50/60Hz
Switching Time Between Parallel And Offline:≤20mS
Rated Voltage/Range:Low voltage system:51.2V/44~57.6V High voltage system:102.4V/89.6~115.2V
Battery Type:Lithium iron phosphate battery (LFP)
Battery Capacity/Expansion Mode:5.12kwh*N; parallel connection; Series connection mode
Maximum Charge/Discharge Rate:0.7/1C
Recommended Maximum Photovoltaic Input Power:3000W
Open Circuit Voltage/Mppt Voltage Range:60-150V
Number Of Mppt/Number Of Strings Per Channel:2/1
Maximum Input Current Of Each Circuit:40A
HMI:LCD+Wifi+LED Optional
Installation Method:to ground; Stacking
Size/Weight:485*450*140*6mm (reference )
